Measuring The Resource Requirements Of DNSSEC

RIPE-352
Publication date:
09 Oct 2005
State:
Published
Author
  • Olaf Kolkman
File(s)
PDF (5.1 MB)

Executive Summary:

We measured the effects of deploying DNSSEC on CPU, memory and bandwidth consumption of authoritative name servers. We did this by replaying query traces captured from ns-pri.ripe.net and k.root-servers.netin a controlled lab environment.

We concluded that deploying DNSSEC on k.root-servers.net can easily be done with the currently deployed systems. In fact using the implementation today, the total increase in memory footprint is less than 5%. CPU usage would grow from 4 to 5% and the increase in bandwidth usage is around 10%.

Deployment of DNSSEC with all zones on ns-pri.ripe.net would cause a significantly higher consumption of memory and bandwidth usage while CPU would increase slightly. But growth is also well within the boundaries set by specifications of the currently deployed systems. The difference in bandwidth consumption between the k.root-server.net and ns-pri.ripe.net experiment was mainly due to the difference in the fraction of packets that requested DNSSEC information.

For k.root-servers.net, we also examined what the upper level of bandwidth consumption would be (i.e. what would happen if each request caused DNSSEC processing). The amount of bandwidth needed to answer the queries increased by 2 or 3 times, depending on some implementation properties. This growth is also within boundaries of currently deployed systems.

We recommend an implementation choice to minimise bandwidth consumption.

Increase of DNSSEC key sizes does not increase the amount of answers with the truncation (TC) bit set.

Introduction

DNSSEC [RFC 4033,RFC 4034,RFC 4035] provides authentication and integrity checking to the domain name system. DNS Resource Records (RR) are signed using private keys. The signatures are published in the DNS as RRSIG resource records. The public keys that are needed to validate the signatures are published as DNSKEY resource records.

In addition to the DNSKEY and RRSIG RRs, DNSSEC introduces the NSEC RR that is used to prove the non-existence of data, and the DS RR that is used to delegate signing authority from one zone to another.

The introduction of these records causes zones to grow significantly. It is expected that this growth would have an effect on disks, memory and bandwidth usage. Besides DNSSEC aware servers have to do special processing to include the appropriate DNSSEC data. This might increase CPU load.

In this paper, we have set out to address the following question: What would be the immediate and initial effect on memory, CPU and bandwidth resources if we were to deploy DNSSEC on k.root-servers.net and ns-pri.ripe.net?

We performed a number of experiments in a test lab. Focusing on the immediate effects we used packet traces captured from the ns-pri.ripe.net and k.root-servers.net production servers. These traces were replayed --mimicking real-time behaviour-- in the lab. The name server answering the queries carried zones that were signed with various sized keys. We measured memory consumption, packet counts and performed bandwidth measurements. These metrics in addition to some observations about the data contained in the traces provided enough information for provisioning the server infrastructure for DNSSEC.

In section 2 we describe the lab environment. In section 3 we perform an analysis of the query traces that were used in the experiment. The EDNS0 properties[rfc2671] of these traces is an important factor in the final bandwidth usage.

In section 4 we describe the impact of loading signed zones on the memory usage of the name servers and provide the parameters that can be used to estimate memory increase when loading signed zones.

In section 5 we assess the impact on CPU load when serving secured zones. Section 6 focuses on the bandwidth and the packet statistics for the various measurement configurations.

In section 7 we discuss the results and provide recommendations.

Appendix B provides a somewhat academic taxonomy of the replies for some of the experiments. We look at size distribution and discuss some of the phenomena that can be observed in these size distributions. This section contains the count of replies with the TC bit.

The paper by [ADF05] contains a similar analysis. Their experiments were more extended. They involved a caching forwarding name server. Their analysis used traces for which all the queries had been modified to include the EDNS0 OPT RR with the DO bit set. They measured the 'per packet' overhead. In this paper we will divert into a similar measurement -- not through the modifications of the query but through the modification of the name servers. We also measure bandwidth increase instead of per packet increase.

We assume the reader is familiar with DNS and DNSSEC jargon.

The figures and graphs are clearest when viewed in colour.


The Test Setup



The DISTEL Lab

The tests are performed on the Domain Name Server testing lab "DISTEL" test lab [KYLK02]. This lab was designed and implemented by the RIPE NCC to perform regression tests during the development of NSD. It is currently maintained by NLnet Labs.

The lab (Figure 1) consists of three identical machines containing AMD Athlon(TM) XP 2000+ (1670.46-MHz 686-class) CPUs. Two machines, labelled player and recorder contain 256 MB of memory. One machine, labelled server, contains 1.5GB of memory and acts as DNS name server. All machines run FreeBSD 6.0-CURRENT (13 June 2005).

The machines are connected through a 100baseT full duplex Ethernet network. The interfaces on that network are configured with RFC1918 addresses. The experiment is controlled through the player.

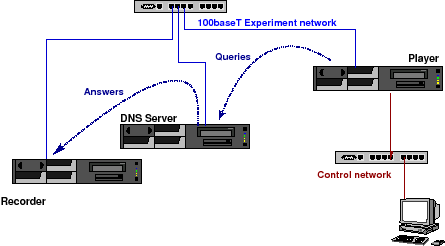

Figure 1: The DISTEL Test Lab


The DNS server has a host route configured for the player and has its default route configured to recorder. recorder has host routes for the other two machines and a default route to /dev/null.

Experiments are performed by taking libpcap traces from the production machines. After modifying the destination IP and MAC addresses to be those of the server the traces were replayed using a modified version of tcpreplay. The modifications to tcpreplay were done to avoid packet burst caused by problems with usleep having limited resolution and sometimes skipping a beat. See [KYLK02] for details.

Because of the default route configured on server the answers end up at recorder on which a tcpdump is collecting the answers before they end up at /dev/null.

In this setup, we can only study the effects of UDP traffic. The server used in the experiment has slightly lower hardware specifications, and runs a different operating system from the ns-pri.ripe.net and k.root-servers.net production systems.



The Server Software

For these experiments, the DNS sever ran BIND 9.3.1[BIND] and NSD 2.3.0 [NSD]. BIND was compiled with open-ssl and without multi threading FN, NSD 2.3.0 was compiled with the default options.

As well as the stock version of these name servers we used modified versions of both of the servers for a subset of the experiments. The modifications were designed to make the servers behave as if every query that had an EDNS0 option without the DO bit set actually had the DO bit set. It also acted as if every query without EDNS0 options actually contained an EDNS0 packet advertising 2048 UDP defragmentation capabilities of the query and with the DO bit set.

named was configured without recursion or any logging FN.



The Zone Configuration

We performed the experiment on two configurations. One configuration
[4]ns-pri.ripe.net and one that was to mimic k.root-server.net.

For the ns-pri.ripe.net type experiments, we used the configuration from 15 June 2005. At this date ns-pri.ripe.net was authoritative for zones like 193.in-addr.arpa (/8 reverse zones), 000.193.in-addr.arpa (/16 reverse zones) and their IPv6 variants whose content is dominated by delegation NS RRs 3.94 * 105 in total). Besides these 'delegation-only domains' there are a number of /24 reverse zones and a couple of small forward zones that relate to the RIPE NCC infrastructure. These account for about 0.05*105 RRs roughly equally spread between PTR, CNAME, A and other resource records.

For the k.root-servers.net type experiments, we created a configuration where the server was authoritative for the root zone with SOA serial 2005070400. The server was not authoritative for other zones like the 'arpa' and 'root-servers.net' that are normally hosted by k.root-servers.net.




Zone Signing

We created a 2048 bits RSASHA1 key signing key (KSK) and two zone signing keys (ZSK) varying from 512 to 2048 bits. The ZSKs and KSK were included in the zone before it was signed with one ZSK and one KSK, using dnssec-signzone from the BIND 9.3.1 distribution. In the signed zone all RR sets are signed with one ZSK. Only the DNSKEY RR set is signed with two keys - the KSK and one ZSK.

Having two ZSKs in the DNSKEY RR set is expected to be a common situation for pre-publish zone signing key rollovers as in section 4.2.1 from [KG05]. In the pre-publish ZSK rollover model, the DNSKEY RRset grows during a ZSK rollover while the number of signatures over the RR sets in the zone remains constant.


Properties of the Query Traces

To perform the experiment, we obtained traces from the production servers. The traces we used contained UDP packets directed at port 53 of the server machines. The amount of data was roughly equivalent to about 10 minutes elapsed time and was taken at a random time for which the query stream did not seem to show anomalous behaviour.

We used two traces. One trace from ns-pri.ripe.net and one from
[4]k.root-servers.net. Table 1 summarises the properties of the traces.

The first column of the table lists the identifier used for the trace during the experiment. The second column lists the time we started recording the trace. The 3rd column the amount of UDP packets to port 53 contained in the trace. The 4th column lists the amount of DNS packets that the analysis script interprets as DNS packets. The packets that have their opcode set to "QUERY" and have not been truncated and do not have their query response flag set are probably bona-fide queries. We analysed those remaining packets on their EDNS0 content. The results are in Table 2 and the pie charts in Figure 2.

The left pie charts show the distribution between queries without the EDNS0 extensions, with the EDNS0 extension but without the DO-bit set and with the EDNS0 extension and with the DO bit set. The middle pie charts show the UDP defragmentation sizes advertised by the clients in the set of packets with an EDNS0 extension. The pie charts at the right show the sizes for those EDNS0 packets with the DO bit set.

The EDNS0 size distributions clearly differ for the query streams against the k.root.servers.net (top) and ns-pri.ripe.net (bottom). While the contribution of the "4096" size to the total of EDNS0 packets is roughly one third for all traces there is a distinct difference between the ratio of 1280 versus 2048 EDNS0 sizes. EDNS0 size 1280 makes up for almost 15% of the EDNS0 packets for the k.root trace while for the ns-pri traces, the contribution is less than 1 %. The EDNS0 size distribution is not the same for the queries with and without the DO bit set. EDNS0 size 1280 is not present for these queries.

The properties of the query streams clearly demonstrate selection effects. We have not investigated what causes the difference between the properties of the queries to k.root-servers.net and ns-pri.ripe.net. If we were to undertake such investigation, our working hypothesis would be that most of the queries to ns-pri.ripe.net are targeted to sub-domains ofin-addr.arpa and that those queries originate from environments where there is a preference for certain name server implementations.

Table 1: Trace Properties

Trace ID Trace times DNS OPCODE TC QR Remaining
    packets QUERY set set DNS packets
k.root 04/05/2005 5 2241766 2239638 6 37 2239598
  23:57:54.338923
  00:08:20.165730
ns-pri 06/15/2005 1711346 1705551 0 0 1705551
  11:39:21.592356
  11:49:09.123635

Table 2: EDNS0 Properties of the Traces

ID   Number Fraction EDNS0 size distribution
      of total 512 1024 1280 1500 2048 4000 4096 16384
k.root E: 742275 34.5% 215 2 109000 0 330591 372 302088 7
  D: 227283 10.1% 141 0 0 0 89114 372 137655 0
ns-pri E: 1202885 70.5% 1259 4 8353 9 745270 0 447990 0
  D: 476504 27.8% 538 0 0 9 234074 0 242062 0

The rows marked 'E:' show the statistics for the DNS packets with an EDNS0 OPT RR.

The rows marked 'D:' show the statistics for the DNS packets that have the DO bit set.

We were also interested in the scenario for which all queries have the DO bit set. We simulated this by modifying the NSD code, to cheat the server into believing that queries with EDNS0 but without the DO bit had their DO bit set, and that queries without the EDNS0 extension had an EDNS0 section with the DO bit set and an EDNS0 size of 2048. [ADF05] chose to use the minimum value of 1220 octets. We use 2048 because that is the minimum value that we've seen in the captured queries that have the DO bit set.). We only performed measurements with this modified name server using the k.root-servers.net configuration. These experiments are marked ``k.modified'' and referred to as experiments on the ``modified server''.

Figure 2: EDNS0 Properties for the k.root (top) and ns-pri Traces (bottom).


Memory Load

To assess the effect of introducing DNSSEC on the memory load of the servers, we created 100 configuration files that contained mixtures of different fractions of signed as opposed to unsigned zones. This allowed us to measure memory usage from the named process for different numbers of NSEC and RRSIG records.

We loaded these configurations and measured the virtual memory size (VSZ) as reported by ps. We repeated the experiment for different sizes of zone signing keys and for two different operating systems.



  • FreeBSD 6.0 on the server system described in Section 2.1.
  • Linux 2.6.10-5-686-smp (Ubuntu distribution) on a Intel P4/Xeon 3Ghz machine with 1GB of memory.

The results are shown in Figure 3 in which the VSZ is plotted against the number of signatures in the zones loaded. The increase in zone size is a function of the number of RRSIGs and the number of NSEC RRs introduced during the signing. Because the content of our zone files (mostly delegation records) the ratio of NSEC to RRSIG records is reasonably constant when it reaches a large number of RRSIGs.

It is clear from the graphs that memory consumption is depended on OS and implementation.

For the FreeBSD system there is no difference in BIND's memory consumption for ZSKs between 512 and 1280 bits, and for ZSKs between 1596 and 2058 bits. The step function in memory load for BIND on FreeBSD is most probably caused by different alignment properties of the various implementations of malloc.

Because we did not have both operating systems available in our lab, we did not investigate any performance differences when running the servers on different operating systems.

Figure: VMS for Different Key Sizes
Left column on FreeBSD. Right column on Linux 2.6.10, top row measurements for named 9.3.1 and bottom row measurements for nsd.


Table 3: Memory Usage Parameters

named 9.3.1 on Linux 2.6.10
ZSK


size value +/- % value +/- % value +/- %
512 0.114 0.014 12.2 0.105 0.014 13.6 2.905e+04 7 0.024
768 0.161 0.016 10.0 0.091 0.016 18.1 2.898e+04 8 0.028
1024 0.211 0.013 6.4 0.070 0.014 19.8 2.904e+04 7 0.023
1280 0.230 0.016 6.8 0.082 0.016 19.5 2.903e+04 8 0.027
1536 0.292 0.016 5.3 0.052 0.016 30.8 2.901e+04 8 0.027
1792 0.280 0.014 5.0 0.096 0.014 15.0 2.905e+04 7 0.024
2048 0.326 0.014 4.3 0.081 0.014 17.5 2.904e+04 7 0.024
named 9.3.1 on Freebsd 6.0
ZSK


size value +/- % value +/- % value +/- %
512 0.236 0.004 1.6 0.143 0.004 2.7 3.888e+04 2 0.005
768 0.237 0.004 1.6 0.142 0.004 2.8 3.887e+04 2 0.005
1024 0.242 0.005 2.0 0.137 0.005 3.6 3.887e+04 2 0.006
1280 0.244 0.004 1.5 0.135 0.004 2.9 3.887e+04 2 0.005
1536 0.494 0.004 0.8 0.137 0.004 3.0 3.888e+04 2 0.005
1792 0.494 0.004 0.8 0.137 0.004 3.1 3.888e+04 2 0.005
2048 0.494 0.004 0.8 0.137 0.004 3.0 3.888e+04 2 0.005
nsd 2.3.0 on Linux 2.6.10
ZSK


size value +/- % value +/- % value +/- %
512 0.177 0.009 4.9 0.055 0.009 16.2 3.100e+04 5 0.015
768 0.214 0.008 4.0 0.050 0.009 17.5 3.099e+04 4 0.014
1024 0.219 0.006 2.9 0.081 0.007 8.2 3.100e+04 3 0.011
1280 0.254 0.007 2.8 0.082 0.007 9.0 3.098e+04 4 0.012
1536 0.292 0.007 2.4 0.069 0.007 10.4 3.099e+04 4 0.012
1792 0.318 0.006 2.0 0.079 0.007 8.4 3.097e+04 3 0.011
2048 0.350 0.007 2.1 0.085 0.008 9.1 3.097e+04 4 0.013
nsd 2.3.0 on Freebsd 6.0
ZSK


size value +/- % value +/- % value +/- %
512 0.167 0.003 1.6 0.066 0.003 4.1 3.091e+04 1 0.004
768 0.199 0.003 1.4 0.065 0.003 4.5 3.091e+04 1 0.005
1024 0.231 0.003 1.1 0.069 0.003 3.9 3.091e+04 1 0.004
1280 0.254 0.003 1.2 0.082 0.003 3.9 3.091e+04 2 0.005
1536 0.295 0.003 1.1 0.066 0.003 4.8 3.091e+04 2 0.005
1792 0.321 0.003 1.0 0.075 0.003 4.3 3.091e+04 2 0.005
2048 0.348 0.003 1.0 0.086 0.004 4.2 3.091e+04 2 0.006

Assuming linear increase of the memory usage as function of the number of NSECs and RRSIGs loaded by named we have performed a least square fit to the following function:

VSZ (NSEC, RRIG) = A * RRSIG + B * NSEC + C

The results for BIND are tabulated in table 3. The units for the parameters are kilo bytes (1024bit).

The values from these tables can be used for estimates of the zone size increase FN.

The memory increase after signing the root zone was measured to be about 156 KB for named 9.3.1 on FreeBSD 6.0. This is exactly what would be expected from using the table above with 262 NSEC RRs (one for the apex and one for each delegation) and 267 RRSIGs (over the apex RRs and over each NSEC).


CPU load

CPU load was measured by reading the weighted CPU from top after the value had flattened out, a couple of minutes after the start and the initial increase in the load due to the loading of zones of the experiment. The variation of the CPU throughout the experiment was typically 2-3% for BIND and about 1% for NSD.

We did not see significant between the CPU load between serving signed and unsigned zones.

Table 4: CPU Usage on FreeBSD 6.0

trace server ZSK size WCPU
ns-pri named 9.3.1 0000 ca 14%
ns-pri named 9.3.1 2048 ca 18%
k.root named 9.3.1 0000 ca 38%
k.root named 9.3.1 2048 ca 42%
k.root named 9.3.1 2048 ca 50% (modified server)
k.root nsd 2.3.0 0000 ca 4%
k.root nsd 2.3.0 2048 ca 4%
k.root nsd 2.3.0 2048 ca 5% (modified server)

CPU load does not seem to be a function of the zone signing key size. For named, the CPU load does seem to correlate with the amount of packets for which DNSSEC processing needs to be done (as simulated by the modified server). For nsd the differences between the CPU load for the server with and without modifications to perform DNSSEC processing for all queries was too small to lead to any conclusions.


Bandwidth and Packet Counts

To collect bandwidth statistics, we ran the iostat command on the server machine while the query stream was replayed. As a side result we obtained egress packet counts.

The iostat program was started shortly before the query stream was replayed therefore there might be small offsets on the time-axis in the plots presented in this section.

ns-pri traces

Figure 4 indicates that the egress bandwidth for measurements with the ns-pri traces against named doubles for small and triples for larger zone signing keys. If we look at the packet counts in Figure 5, we see that that the amount of Ethernet packets sent out for 512 ZSK signed zones is the same as for unsigned zones. The amount of packets needed for 768 to 2048 bit ZSK signed zones is about 10% more. This is an indication for IP fragmentation. And confirms the what we saw in section B.1.

Figure 4: Bandwidth as Function of Key Size for Trace ns-pri


Figure 5: Packet Counts as Function of Key Size For Trace ns-pri


K.root Traces

Figure 6: Bandwidth Increase as Function of Key Size for the k.root Trace Against named 9.3.1 and Modified named 9.3.1


Figure 7: Bandwidth Increase as Function of Key Size for the k.root Trace Against nsd 2.3.0 and Modified nsd 2.3.0


Bandwidth increase due to zone signing for the root is shown in Figures 6 and 7.

The egress packet counts are plotted in Figures 8, and 9. What can be observed from these plots is that the packet counts on the unmodified versions do not show significant offsets. All lines overlap.

The response packets from the modified named, in the left graph of Figure 8, grow above the Ethernet MTU. This shows through the offsets in the packet counts.

All response packets from the modified nsd have sizes lower than the Ethernet MTU therefore all lines in Figure 9 overlap.

Figure 8: Packet counts as function of key size for trace k.root against named 9.3.1 and modified named 9.3.1


Figure 9: Packet counts as function of key size for trace k.root against nsd 2.3.0 and modified nsd 2.3.0



Discussion

Because the number of packets with the ``DO'' bit set is relatively low, there would be no significant impact on the bandwidth consumption for
k.root-servers.net if a signed root zone were to be served today. Even in a worst-case scenario, when all queries to the root would have the ``DO'' bit set, the bandwidth usage would only grow by a factor 2 to 3 depending on key size and implementation used.

For ns-pri.ripe.net signing all its zones would increase bandwidth use by a factor 2 to 3 depending on the key size. The increase in CPU and memory usage will not cause problems on the production system.

It is safe to conclude that the impact of DNSSEC deployment on CPU load is of no concern. The impact of memory consumption can easily be estimated from the zone content. The growth in memory consumption is significant, but we do not think that the total amount of memory needed will be an issue for most authoritative servers running on commodity hardware; when serving of the order of 106 resource records the four gigabyte limit on 32bit Intel architectures may become a barrier.

The impact on bandwidth usage is much harder to estimate.

Estimating Bandwidth Usage

The effects of enabling DNSSEC is depends on many variables. These are, roughly in order of significance:

  • the fractions of queries with the ``DO'' bit set;
  • the inclusion of a DNSKEY RRs in the additional section; (See the recommendation below.)
  • the amount of queries for existent and non-existent domain names; (The size difference between an unsigned Name Error packet and a signed Name Error packet is significant, also see [ADF05].)
  • the size of the ZSK and KSK. The effect of the size of the KSK is not measured here, but it makes up a significant fraction of the DNSKEY RR set and its signatures;
  • the amount of KSKs and ZKSs in the DNSKEY RRset; (Depending on the rollover scheme used there can be multiple DNSKEY RRs in the zone and multiple RRSIGs over these keys. If multiple algorithms are used, which could be the case when a transition from RSASHA1 to ECC is made, the size of these RR sets can grow quite significantly.)
  • the label depth of the records in the zone and therefore the need to include a second NSEC RR, with corresponding RRSIG, to prove the non existence of wildcards;

Because of these variables, there is no easy method to determine the impact of signing zones in generic environments.

The two configurations we tested were biased towards ``delegation only'' zones. For a delegation, two RRs are added to positive responses when serving a signed zone, an NSEC or DS RR and a RRSIG. When serving ``end-node'' data only a RRSIG is added for positive responses.

When estimating the impact of DNSSEC deployment, you should first look at the fractions of queries that have the DO bit set. If that fraction is small the impact of DNSSEC deployment will not be significant.


Effects Not Measured

These experiments only provide insight to the first order effects. We do not know what happens on the Internet when DNSSEC answers are returned to the clients.

The following scenarios seem likely:

Scenario A - A client behind a middle box (e.g. a firewall) sets the DO bit. The query crosses the middle box and is answered by the server. The answer that contains DNSSEC information does not cross the middle box, simply because the middle box does not implement DNSSEC or is not configured to deal with fragmented UDP on port 53.

scenario B - The Client sets the DO bit, but does not know what to do with the DNSSEC information in the answer and continues to query.

Scenario A is most likely. The EDNS0 specifications [rfc2671] do not demand that a resolver should retry without EDNS0 when there has not been an answer from an EDNS0 query. However, BIND developers have explained that BIND9 will re-query without EDNS0 and will cache the EDNS0 capability of the server. In other words, BIND9 resolvers will fall back to non-EDNS0 behaviour, resend their query without the DO-bit and receive non-DNSSEC answers FN

We are not aware of any clients that set the DO bit and would not know how to process the DNSSEC replies.

Appendix A provides an overview of which type of clients queried k.root-servers.net. Most of the DO queries are being sent by BIND servers. Only an analysis of query patterns of deployment on signed zones on the Internet can tell us if we should worry about non-linear effects.

Recommendation

The distinct difference between named and nsd is that the latter does not add DNSKEY RRs and related RRSIGs in the additional section for a Name Error response. Both servers comply to the specification since a security-aware authoritative name server [...] MAY return the zone apex DNSKEY RRset in the Additional section (section 3.2.1 [rfc4035]). This different behaviour is the main cause for the difference in bandwidth consumption between the two implementations.

It can be argued that at the start of DNSSEC deployment, while the amount of validation DNS clients is small, there is little need to add the DNSKEY RR set to the additional section. Most DNS clients that set the DO bit will not use the information anyway and the minority of clients that do need the key information can afford the extra query. Our recommendation is to make the inclusion of DNSKEY RRs in the additional section, a configurable option, at least during early deployment of DNSSEC.

Stripping the RRSIG RR set from the additional section without stripping the DNSKEY RRs increases bandwidth consumption, while validators that need the DNSKEY RRs for validation will still need to re-query to obtain the missing signatures.

Conclusion

Serving signed zones has little impact on CPU resource use. The impact on memory usage is predictable and well within the specification of the production machines that are authoritative for the zones we used in this experiment.

Bandwidth usage increase can be significant, an increase by a factor of 2 to 3 was measured. To reduce the impact of bandwidth consumption, we recommend configuring your name server to not include DNSKEY RRs in the additional section.

Appendices


DNS Clients

We took a sample of 3927 unique IP addresses from the traces and used a DNS fingerprinting tool [AS] to see what type of clients set the DO-flag. We could determine the client type for 2373 of the IP addresses.

Table 5: Implementations Setting the DO Bit

Client implementation no.
ATOS Stargate ADSL 1
BIND 8.3.0-RC1 - 8.4.4 2
BIND 8.3.0-RC1 - 8.4.4 [recursion enabled] 8
BIND 8.3.0-RC1 - 8.4.4 [recursion local] 4
BIND 9.0.0b5 - 9.1.3 [recursion local] 3
BIND 9.1.0 - 9.1.3 17
BIND 9.1.0 - 9.1.3 [recursion enabled] 71
BIND 9.2.0a1 - 9.2.0rc3 [recursion enabled] 4
BIND 9.2.0a1 - 9.2.2-P3 [recursion enabled] 29
BIND 9.2.0a1 - 9.2.2-P3 [recursion local] 1
BIND 9.2.0rc4 - 9.2.2-P3 [recursion enabled] 7
BIND 9.2.0rc7 - 9.2.2-P3 173
BIND 9.2.0rc7 - 9.2.2-P3 [recursion enabled] 836
BIND 9.2.0rc7 - 9.2.2-P3 [recursion local] 47
BIND 9.2.3rc1 - 9.4.0a0 [recursion enabled] 828
ISC BIND 9.2.3rc1 - 9.4.0a0 309
Microsoft Windows 2000 3
Microsoft Windows 2003 1
Microsoft Windows NT4 1
MyDNS 18
PowerDNS 2.9.4 - 2.9.11 4
Runtop Implementation 3
TinyDNS 1.05 2
totd 1
No match found 325
TIMEOUT 1229

This table only provides an indication of the resolvers that queried the root server. The fingerprinting was done at a different time to when we made the original query. This could explain the appearance of implementations that, as far as we know, do not have a DNSSEC support.

We performed a visual inspection on the queries sent by implementations other than BIND. These packets were all valid DNS packets with EDNS0 OPT RRs in the additional section that were 'properly' formatted i.e. they had no other flags than the DO-flag set, advertised 2048 or 4096 sizes, etc.

As mentioned in 7.2 the behaviour of BIND9 in situations where middle boxes drop replies is well understood.


Analysis of the Recorded Replies

The replies recorded by the recorder contain much information. Since we tried to limit the scope of this paper and because of the lack of dedicated tools, we did not correlate the queries that were sent with the answers received. Neither did we investigate the variations in response times for different key sizes.

In Table 6, we present the core parameters of the recorded reply traces. In the second column of each of the four sub-tables we list the amount of DNS packets we counted in the reply trace. The third column lists how big a fraction this is from the number of DNS packets that we've listed in the third column of Table 1.

The decreasing percentage of DNS packets received for growing key sizes is not caused by the servers dropping packets. The analysis script, that was written to measure first order effects, does its own IP packet defragmentation. It is likely that it fails to to do defragmentation in all cases where IP fragmentation has occurred.

The fourth column indicates the amount of packets with the truncated (TC) bit set. What can be seen from this table is that the introduction of DNSSEC will cause packet truncation for about one packet each second. Wider application of EDNS0 would reduce truncations for unsigned zones (e.g. the k.modified query has 0 truncated packets compared to 0.5k packets truncated for replies from the unmodified server.)

The fifth column presents a count of the number of packets that had at least one RRSIG resource record in any of the sections of the packet.

Table 6: Core Characteristics of the Recorded Response Traces

ns-pri against named 9.3.1
ZSK DNS TC with
size packets set RRSIGs
0000 1703986 (99.91%) 0 0
0512 1703993 (99.91%) 199 475803
0768 1703972 (99.91%) 199 475837
1024 1703837 (99.90%) 199 475786
1280 1704008 (99.91%) 205 475828
1536 1703957 (99.91%) 205 475829
1792 1704119 (99.92%) 205 475843
2048 1703858 (99.90%) 209 475771
k.root against named 9.3.1
ZSK DNS TC with
size packets set RRSIGs
0000 2235229 (99.80%) 0 0
0512 2233248 (99.71%) 518 226756
0768 2228432 (99.50%) 548 226208
1024 2230825 (99.61%) 550 226496
1280 2228756 (99.51%) 583 226189
1536 2229255 (99.54%) 603 226192
1792 2227160 (99.44%) 603 225811
2048 2230531 (99.59%) 628 226218
k.root against modified named 9.3.1
ZSK DNS TC with
size packets set RRSIGs
0000 2234747 (99.78%) 0 0
0512 2231873 (99.65%) 1 2227936
0768 2229299 (99.54%) 68 2225284
1024 2227767 (99.47%) 75 2223773
1280 2227267 (99.45%) 119 2223217
1536 2225612 (99.37%) 648 2221042
1792 2226255 (99.40%) 684 2221640
2048 2225794 (99.38%) 705 2221160
k.root against nsd 2.3.0
ZSK DNS TC with
size packets set RRSIGs
0000 2239770 (100.01%) 518 0
0512 2236494 (99.86%) 520 226882
0768 2235973 (99.84%) 549 226730
1024 2237481 (99.90%) 550 226853
1280 2237250 (99.89%) 585 226796
1536 2237242 (99.89%) 606 226809
1792 2236459 (99.86%) 610 226782
2048 2237055 (99.88%) 634 226749
k.root against modified nsd 2.3.0
ZSK DNS TC with
size packets set RRSIGs
0000 2240141 (100.02%) 0 0
0512 2238062 (99.93%) 0 2234120
0768 2238556 (99.95%) 0 2234612
1024 2238696 (99.96%) 0 2234752
1280 2237768 (99.92%) 0 2233825
1536 2236664 (99.87%) 519 2232201
1792 2235883 (99.83%) 519 2231424
2048 2234545 (99.77%) 517 2230096

Size Distribution

We measured the sizes of the packets in the response traces which had OPCODE QUERY and did not have the TC bit set in the header.

Size Distributions for ns-pri Experiment

Figure 10 shows the size distribution of four different key sizes on a linear scale. In this plot, you can distinguish distinct peaks that we will refer to as harmonics. To study these more closely, we created a plot with a logarithmic scale in Figure 11. In this plot, we marked a number of the harmonics. The properties of these harmonics, that are specific for the ns-pri setup are described below. These harmonics are defined by observed peaks. The amount of responses (the signal) in these peaks is determined by zone content and query distributions and are therefore specific to the system under observation.

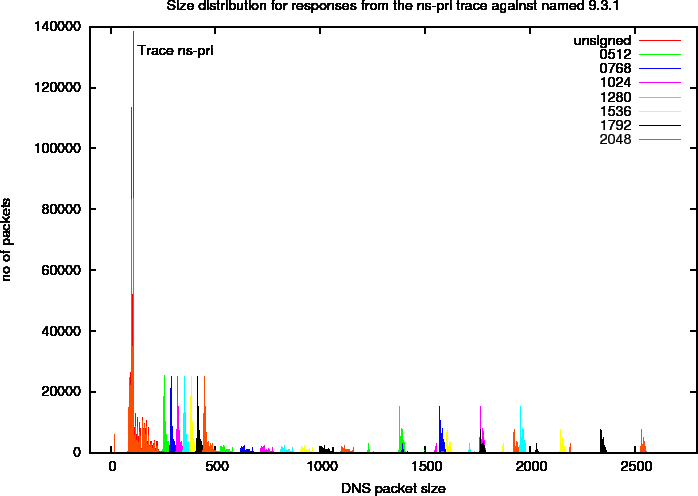

Figure 10: DNS Packet Size Distributions for ns-pri Traces Against named 9.3.1


Figure 11: Logarithmic DNS Packet Size Distributions for ns-pri Traces Against named 9.3.1


Table 7: Harmonics Found in the Signed Responses for the ns-pri Trace. Also see Figure 11

id 512 1024 1536 2048
1 289 353 385 449
2 530 733 925 1117
3 1233 1536 1837 2193
4 1380 1764 2158 2542
a     1619 1939
b       1590

Below we describe the properties of some of the harmonics found in the ns-pri replies.

Harmonic 1 is caused by packets that contain delegations in reverse address space that contain two NS, one NSEC and one RRSIG resource record in the authority section and have an empty answer and additional section.

Harmonic 2 is caused by by packets that contain a delegation for a /16 in-addr.arpa zone for which ns-pri is an authoritative server. So, in addition to the two NS one NSEC and one RRSIG resource records in the authority section the additional section contains an A and AAAA RR for ns-pri.ripe.net plus the RRSIGs over those records.

Harmonic 3 is caused by Name Error responses (NXDOMAIN). These packets contain a SOA, an NSEC and their RRSIG Resource records in the authority section and the DNSKEY RR set (containing three keys) with its RRSIGs (one with the KSK and one with the ZSK).

Harmonic 4 is also caused by Name Error responses. These include the SOA and two NSEC RRs with their RRSIGs in the authority section, and the DNSKEY RRs with RRSIGs in the additional section. The inclusion of two NSEC RRs is needed to deny the existence of wildcards.

Harmonic A is a harmonic 4type packet with the RRSIGs over the DNSKEY RR set in the additional section removed.

Harmonic B is a harmonic 3type packet with the RRSIGs over the DNSKEY RR set in the additional section removed.

The difference between Harmonic 3 and 4 is that Harmonic 3 contains a NSEC RR that immediately proves the non existence of a 'closer encloser' like in

;; QUESTION SECTION (1 record)
;; 215.103.43.84.in-addr.arpa. IN PTR
(...)
9.42.84.in-addr.arpa. 7200 IN NSEC 128.43.84.in-addr.arpa (
NS NSEC RRSIG )

while Harmonic4 packets need two NSECs for such proof as in

;; QUESTION SECTION (1 record)
;; 47.112.102.80.in-addr.arpa. IN PTR
(...)
80.in-addr.arpa. 7200 IN NSEC 0.80.in-addr.arpa (
DNSKEY NS NSEC RRSIG SOA )
100.80.in-addr.arpa. 7200 IN NSEC 104.80.in-addr.arpa (
NS NSEC RRSIG )

See section 3.1.3.2 of [rfc4035] for details.

The harmonics do not always contain the same amount of packets. As soon as the size of packets of a given harmonic become larger than that advertised by a significant fraction of the clients, some of the signal from that harmonic is transferred to another one. For instance, at ZSK size 1536 signal from Harmonic 4 is transferred to Harmonic A since the harmonic occurs at a size larger than 2048. On the other hand there is no sign of an equivalent to harmonic b since harmonic 3 is still below the 2048 size limit.

Since the amount of signal is hard to judge from these logarithmic plots, we show the fraction of the total amount of packets that is smaller than a given size for the different ZSK sizes in Figure 12. In this kind of plot, the harmonics can be identified by the steep rises in the curves. You can clearly see the transfer of signal for ZSK sizes of 1536 bits and larger. The last step in the graph corresponds to Harmonic 4. For smaller keys this harmonic accounts for slightly less than 10% while for larger keys some about half of these packets are moved to Harmonic A.

Figure 12: Cumulative DNS Packet Size Distributions for ns-pri Traces Against named 9.3.1


Size Distributions for k.root Experiments

For each of the four experiments we performed using the k.root trace we created the various size distribution plots (Figure 13, 14 and 15). In these plots, the left column presents the measurements for the named 9.3.1 and the right column the measurements for nsd 2.3.1. The top row shows the effect of replaying the k.root trace as it stands, the bottom row shows the effects of replaying the trace against the modified versions of the server.

Since the fraction of packets in the k.root trace with the DO bit set is roughly 10%, the effects of signing are not as extreme as for the ns-pri trace.

To study the effect of signing on packet content, we use the output of the modified named server and define a number of harmonics. These harmonics are listed in Table 8 and indicated in the bottom left plot of Figure 14.

Figure 13: Size Distribution for Different ZSKs of Response Packets after Playing the k.root Trace Against named 9.3.1 (top left), nsd 2.3.0 (top right), Modified named 9.3.1 (bottom left) and Modified nsd 2.3.0 (bottom right).


Figure 14: Logarithmic Size Distribution of Response Packets after Playing the k.root Trace Against named 9.3.1 (top left), nsd 2.3.0 (top right), Modified named 9.3.1 (bottom left) and Modified nsd 2.3.0 (bottom right).


Table 8: Harmonics Found in the Signed Responses for the k.root Trace Against the Modified named 9.3.1 name server. Also see Figure 14

id 512 1024 1536 2048
1 573 630 702 768
2 653 717 781 845
3 901 1215 1546 1847
4 1130 1464 1770 2104
5 1256 1645 2054 2408
a -- 960 1152 --
b -- 1020 1272 1518
x -- -- -- 1036

Below we describe the properties of some of the harmonics found in the replies from the modified named 9.3.1 server.

Harmonic 1 are delegations to the arpa domain containing 12 NS RRs, on NSEC and one RRSIG over the NSEC in the authority section and 12 A type glue RRs in the additional section. This harmonic would not occur on the production system as [4]k.root-servers.net is authoritative for the 'arpa' domain. It would return a delegation to the relevant subsequent domain or return a name error.

Harmonic 2 are delegations to the gtld-servers. The authority section contains 13 name servers, one NSEC and one RRSIG. The additional section contains 13 A type glue RRs and 2 AAAA type glue RRs.

Harmonic 3 are typically Name Error responses. They contains the root's SOA, two NSEC RR and their RRSIGs in the authority section and the signed DNSKEY RR without a RRSIG RR set in the additional section. The two NSEC RRs are needed to prove non-existence of the exact match (pointing from NR. to NU.) and one to prove non existence of a wildcard. If the RRSIGs had been included, these packets would be included in Harmonic 5. This harmonic can not be distinguished in the responses from nsd (bottom right plot). nsd does not include the DNSKEY RR set and the data remains hidden between the majority of queries in the band around 500 octets size. This harmonic can also not be distinguished in the responses from the unmodified name server for 512 bit ZSK (see the plot on the top left). They are significant in plot for the modified server. The third harmonic in the 512 ZSK measurements is mostly caused by queries for [4] _ldap._tcp.dc._msdcs.ntserver. IN SRV. This harmonic appears because on the modified server the original EDNS0 size is honoured and a significant fraction of the clients advertise that they can handle 1280 sized responses.

Harmonic 4 are typically responses to . IN Aqueries. The responses typically contain the SOA and an NSEC RR (owned by `.') and their RRSIGs in the authority section and the signed DNSKEY RR set in the additional section.

Harmonic 5 are typically Name Error responses that contain the root's SOA, two NSEC RR and their RRSIGs in the authority section and the signed DNSKEY RR with their RRSIG RRs in the additional section.

Harmonic A only occurs in the plots for ZSKs 1024 and 1596. Packets in this harmonic are typically responses to the priming query . IN NS. With the roots NS RRset and its RRSIG in the answer section and a DNSKEY RR set without RRSIG in the additional section. This harmonic appears and disappears because it is a by-product of the 1280 size honoured by the modified server.

Harmonic B are typically Name Error responses to queries for records in numerical top level domains with only one NSEC RR and corresponding RRSIG in the authority section. (The NSEC that denies existence of numerical TLDs also denies the existence of the `*') for ZSK 2048 Harmonic B also includes the packets from Harmonic 4with their signatures stripped.

Harmonic X only occurs responses from the zone signed with a 2048 bit ZSK. These packets typically contain a Name Error response. It has a two NSEC RRs proof for non existence in the authority section. It does not have DNSKEYs in the additional section. These are the packets that did not fit in Harmonic 3. It is Harmonic X that shows the distinct peak in packet distribution for 2048 ZSK zones served by the modified nsd 2.3.0 server (bottom right plot of figure 14. For smaller key sizes this harmonic is convolved with other harmonics.

In the figures for the modified nsd responses there is one distinct peak at 1625 and 2009 octets for the 512 and 1024 bits ZSK distributions(Figure 14, bottom left plot, second and third frame from the bottom).

Those peaks are caused by responses to the . IN ANY query. The amplitude of the peak is 518 packets. The reason for this peak not to occur for the 1592 bits ZSK responses is that these responses do not fit and the packets are truncated. This is confirmed in Table 6 where these packets show up as being truncated.

The peak also shows in the 512 ZSK graph (at 1852 octets) and occurs at 1801 octets in the 1024 ZSK graph for named. The content - or the sizes - of the responses to the ANY query are different. The named comes with an empty additional section while nsd adds A glue records to the additional section.

These peaks do not occur in the unsigned zone either. We did not include the DNSKEY RRset in the the unsigned version of the zone. The response to the ANY query then only measures 296 octets for named and 493 octets for nsd, the latter including glue.

The distributions for the unsigned zones differ slightly between the unmodified and modified servers (compare the bottom frames of the same row). This is caused by the fact that the modified treats all clients as if they are able to deal with responses of 1280 bytes or more. The unmodified server will need to honour the 512 byte size limit for the 65.5% of the queries that do not have the EDNS0 extension.

Figure 15: Cumulative Packet Sizes for Replies From the k.root Traces


Figure 15 shows the cumulative size distributions.

The graphs indicate that the amount of signal in the harmonics is rearranged for larger key sizes.

The most important conclusion that can be drawn from the graph is that when the DNSKEY RRs with their signatures are not included in the responses, the nsd behaviour packet sizes will not grow beyond 1259 octets, well beyond the MTU on Ethernet networks.


Acknowledgements

Thanks Daniel Karrenberg for the design and implementation of the DISTEL lab, proofreading of the manuscript and the Vlaai FN during his instructions on how to operate the lab. Erik Rozendaal for coding the modifications to NSD. Mark Andrews for explaining the EDNS0 behaviour for BIND. People that helped me by asking clever questions or suggesting directions are Joao Damas, Lorenzo Colitti and Mark Santcroos. Adrian Bedford and Jaap Akkerhuis for proofreading the manuscript.

Most of this work was done while I was employed by the RIPE NCC.

Bibliography

ADF05
Bernhard Ager, Holger Dreger, and Anja Feldmann.
Exploring the Overhead of DNSSEC, April 2005.
http://www.net.informatik.tu-muenchen.de/~anja/feldmann/papers/dnssec05.pdf, Work in progress.

AS
Roy Arends and Jakob Schlyter.
fpdns - Fingerprinting DNS servers.
FPDNS webpages.
http://www.rfc.se/fpdns/.

BIND
ISC BIND nameserver webpage.
http://www.isc.org/index.pl?/sw/bind/.

KG05
Olaf Kolkman and Miek Gieben.
DNSSEC Operational Practices <draft-ietf-dnsop-dnssec-operational-practices-05.txt>, September 2005.
http://tools.ietf.org/html/draft-ietf-dnsop-dnssec-operational-practices-05, DNSOP WG Internet draft, drafts are subject to change and have a limited lifetime. See also the Internet-Drafts Database Interface

KYLK02
Daniel Karrenberg, Alexis Yushin, Ted Lindreen, and Olaf Kolkman.
DISTELDomain Name Server Testing Lab, November 2002.
http://www.ripe.net/ripe/meetings/ripe-43/presentations/ripe43-dnr-distel/.

NSD
NLnet Labs NSD nameserver webpage.
http://www.nlnetlabs.nl/nsd/.

rfc2671
P. Vixie.
RFC 2671: Extension Mechanisms for DNS (EDNS0).
IETF, August 1999.
ftp://ftp.ietf.org/rfc/rfc2671.txt.

rfc4033
R. Arends, R. Austein, M. Larson, D. Massey, and S. Rose.
RFC4033: DNS Security Introduction and Requirements.
IETF, March 2005.
ftp://ftp.ietf.org/rfc/rfc4033.txt.

rfc4034
R. Arends, R. Austein, M. Larson, D. Massey, and S. Rose.
RFC4034: Resource Records for the DNS Security Extensions.
IETF, March 2005.
ftp://ftp.ietf.org/rfc/rfc4034.txt.

rfc4035
R. Arends, R. Austein, M. Larson, D. Massey, and S. Rose.
RFC4035: Protocol Modifications for the DNS Security Extensions.
IETF, March 2005.
ftp://ftp.ietf.org/rfc/rfc4035.txt. Note: URLs may be subject to change.

Document history: This RIPE document is based on Revision 29 of the manuscript source.

Footnotes

... Kolkman
[email protected]

... threading
BIND 9.3.1 that came with FreeBSD 6.0 CURRENT was compiled with multi-threading and that showed a clear performance limit at 3000 packets per second answer rate.

... logging
During the preparations of experiments we noticed performance problems that were caused by having the default logging category logged to a channel that was configured with severity debug 6.

... increase
The fits shows very different results for the amount of memory consumed per NSEC (the B parameter in Table 3). We do not expect that parameter to change between the various fits. The cause is that the number of NSEC RRs and the number of RRSIGs is not completely independent. The number of NSEC RRs is never larger than the number of RRSIG RRs, and the ratio for the zones for which ns-pri.ripe.net is authoritative is between 1:1 and 1:2. As a result we are trying to fit a plane to an almost straight line in the (VSZ, NSEC, RSSIG) space and there are to little data points away from the line to reliably determine NSEC.

... answers
As soon as these client configure a trust-anchors they will see validation failures and will not be able to resolve signed zones at all.

...Vlaai
A treat from the province of Limburg

Olaf Kolkman 2005-09-28
