[atlas] TLS Certificate probes fail ("handshake failure") against Vercel servers

Hi Daniel,

I think this may be because the measurement code doesn’t support TLS 1.3 yet, and vercel.com does. It’s a known issue, we’d like to add TLS 1.3 at some point.

You can find the relevant code here:
https://github.com/RIPE-NCC/ripe-atlas-probe-measurements/blob/7c03fba082e93b7a1f0f14cc3769bb31e83909e3/eperd/sslgetcert.c#L927

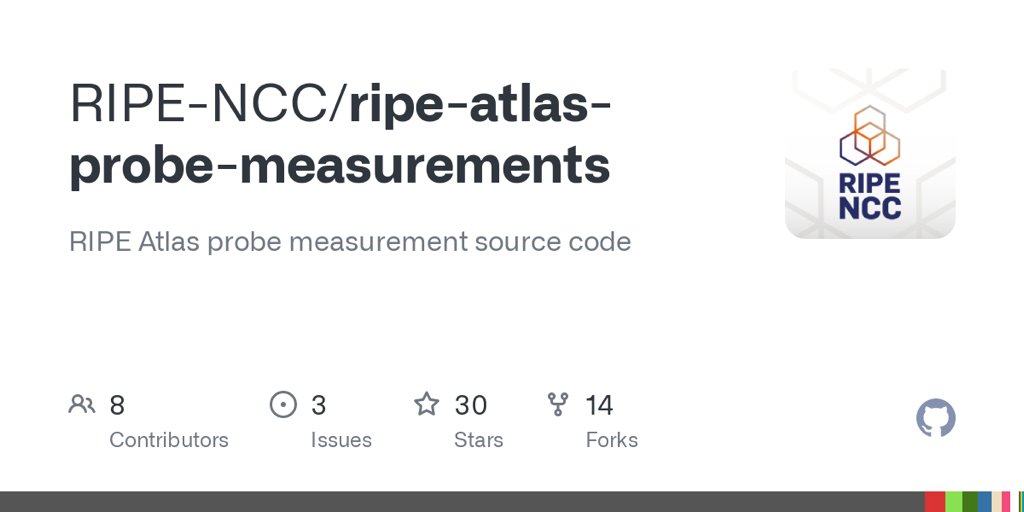

ripe-atlas-probe-measurements/sslgetcert.c at 7c03fba082e93b7a1f0f14cc3769bb31e83909e3 · RIPE-NCC/ripe-atlas-probe-measurements
github.com

Cheers,

Michel

> On 25 Jan 2023, at 18:16, Daniel Kahn Gillmor <dkg at fifthhorseman.net> wrote:
>
> Hi RIPE Atlas folks--
>
> I noticed today that using the "SSL" probe (gathering X.509 certificates
> from a TLS endpoint) appears to fail against servers operated by
> Vercel.  the failure is a uniform "handshake failure" according to the
> web interface.
>
> I think this might be a bug in the probe's implementation of the client
> side of TLS.  Where could i find the specific implementation of that
> probe type so that i can debug it further?
>
> Or, if this is a known issue, where can i read up on it in more detail?
>
> I've demonstrated this by probing Vercel's own servers, since they
> appear to be eating their own dogfood.
>
> You can see this with measurement 49131334:
> https://atlas.ripe.net/measurements/49131334/#probes
>
> here is the definition of the query i made:
>
> {
> "definitions": [
>  {
>   "target": "vercel.com",
>   "af": 4,
>   "port": 443,
>   "hostname": "vercel.com",
>   "description": "SSL measurement to vercel.com",
>   "resolve_on_probe": true,
>   "skip_dns_check": false,
>   "type": "sslcert"
>  }
> ],
> "probes": [
>  {
>   "type": "area",
>   "value": "WW",
>   "requested": 10
>  }
> ],
> "is_oneoff": true,
> }
>
>
> This is pretty odd, since normal TLS clients appear to be able to
> connect to them fine.  Here's me running a manual handshake debugger
> against vercel.com's servers:
>
> $ gnutls-cli-debug vercel.com
> GnuTLS debug client 3.7.8
> Checking vercel.com:443
> whether the server accepts default record size (512 bytes)... yes
>                  whether %ALLOW_SMALL_RECORDS is required... no
>                        whether we need to disable TLS 1.2... no
>                        whether we need to disable TLS 1.1... no
>                        whether we need to disable TLS 1.0... no
>                        whether %NO_EXTENSIONS is required... no
>                             for TLS 1.0 (RFC2246) support... no
> for TLS 1.0 (RFC2246) support with TLS 1.0 record version... no
>                             for TLS 1.1 (RFC4346) support... no
>                                  fallback from TLS 1.1 to... failed
>                             for TLS 1.2 (RFC5246) support... yes
>                             for TLS 1.3 (RFC8446) support... yes
>                    for known TLS or SSL protocols support... yes
>                       TLS1.2 neg fallback from TLS 1.6 to... failed (server requires fallback dance)
>                                     for HTTPS server name... Vercel
>                               for certificate chain order... sorted
>                  for safe renegotiation (RFC5746) support... yes
>                    for encrypt-then-MAC (RFC7366) support... no
>                   for ext master secret (RFC7627) support... no
>                           for heartbeat (RFC6520) support... no
>                       for version rollback bug in RSA PMS... yes
>            whether the server ignores the RSA PMS version... yes
> whether small records (512 bytes) are tolerated on handshake... yes
>    whether cipher suites not in SSL 3.0 spec are accepted... yes
> whether a bogus TLS record version in the client hello is accepted... yes
>         whether the server understands TLS closure alerts... yes
>            whether the server supports session resumption... yes
>                      for anonymous authentication support... no
>                              for RSA key exchange support... no
> |<1>| FFDHE groups advertised, but server didn't support it; falling back to server's choice
>                      for ephemeral Diffie-Hellman support... yes
> |<1>| FFDHE groups advertised, but server didn't support it; falling back to server's choice
>                        for RFC7919 Diffie-Hellman support... no
>                   for ephemeral EC Diffie-Hellman support... yes
> for VKO GOST-2012 (draft-smyshlyaev-tls12-gost-suites) support... no
>                             for curve SECP256r1 (RFC4492)... yes
>                             for curve SECP384r1 (RFC4492)... yes
>                             for curve SECP521r1 (RFC4492)... yes
>                                for curve X25519 (RFC8422)... yes
>                      for AES-GCM cipher (RFC5288) support... yes
>                      for AES-CCM cipher (RFC6655) support... no
>                    for AES-CCM-8 cipher (RFC6655) support... no
>                      for AES-CBC cipher (RFC3268) support... no
>                 for CAMELLIA-GCM cipher (RFC6367) support... no
>                 for CAMELLIA-CBC cipher (RFC5932) support... no
>                     for 3DES-CBC cipher (RFC2246) support... no
>                  for ARCFOUR 128 cipher (RFC2246) support... no
>            for CHACHA20-POLY1305 cipher (RFC7905) support... yes
> for GOST28147-CNT cipher (draft-smyshlyaev-tls12-gost-suites) support... no
>                                       for MD5 MAC support... no
>                                      for SHA1 MAC support... no
>                                    for SHA256 MAC support... no
> for GOST28147-IMIT MAC (draft-smyshlyaev-tls12-gost-suites) support... no
>                     for max record size (RFC6066) support... no
>                for OCSP status response (RFC6066) support... yes
> $
>
> Thanks for any pointers,
>
>       --dkg
>
> --
> ripe-atlas mailing list
> ripe-atlas at ripe.net
> https://mailman.ripe.net/
