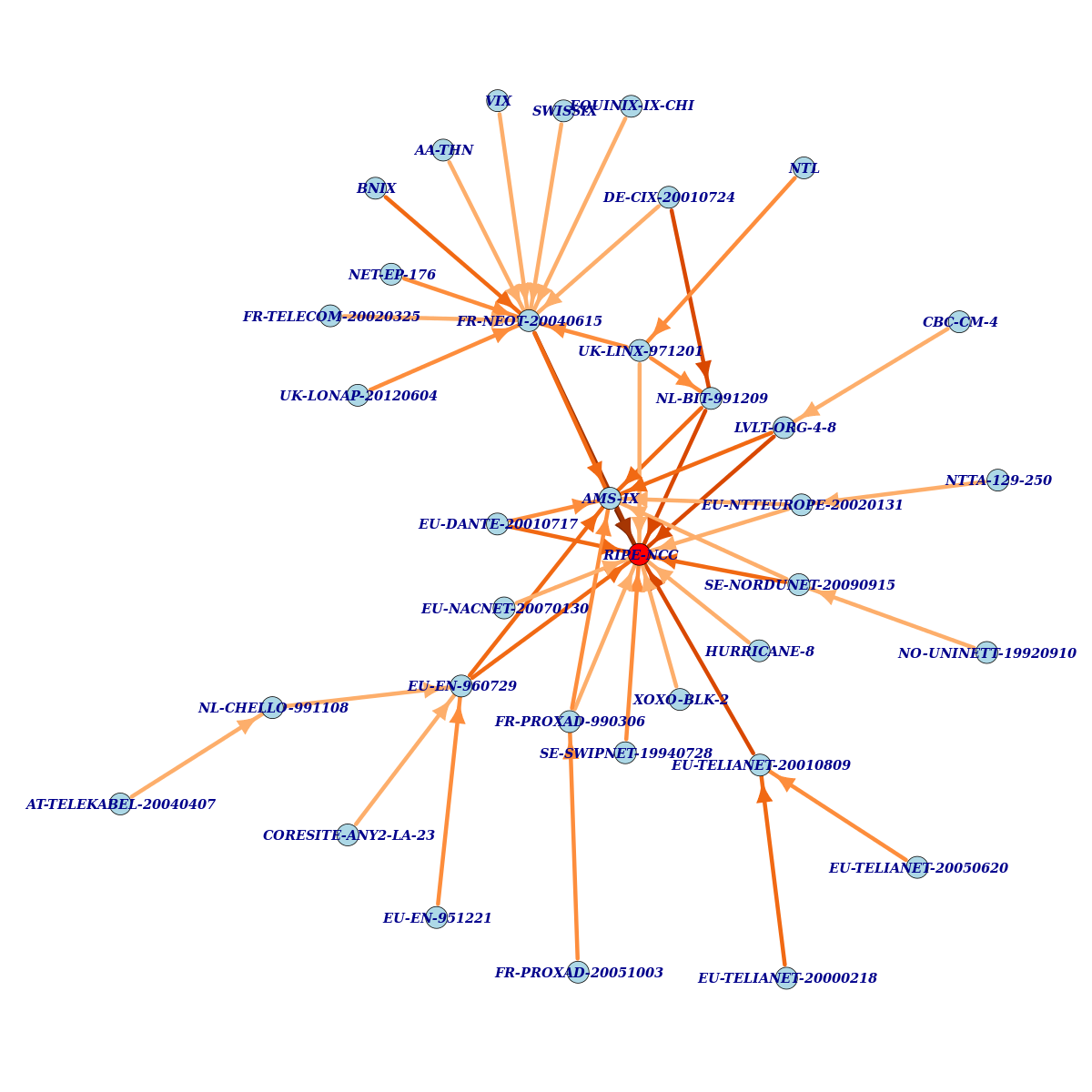

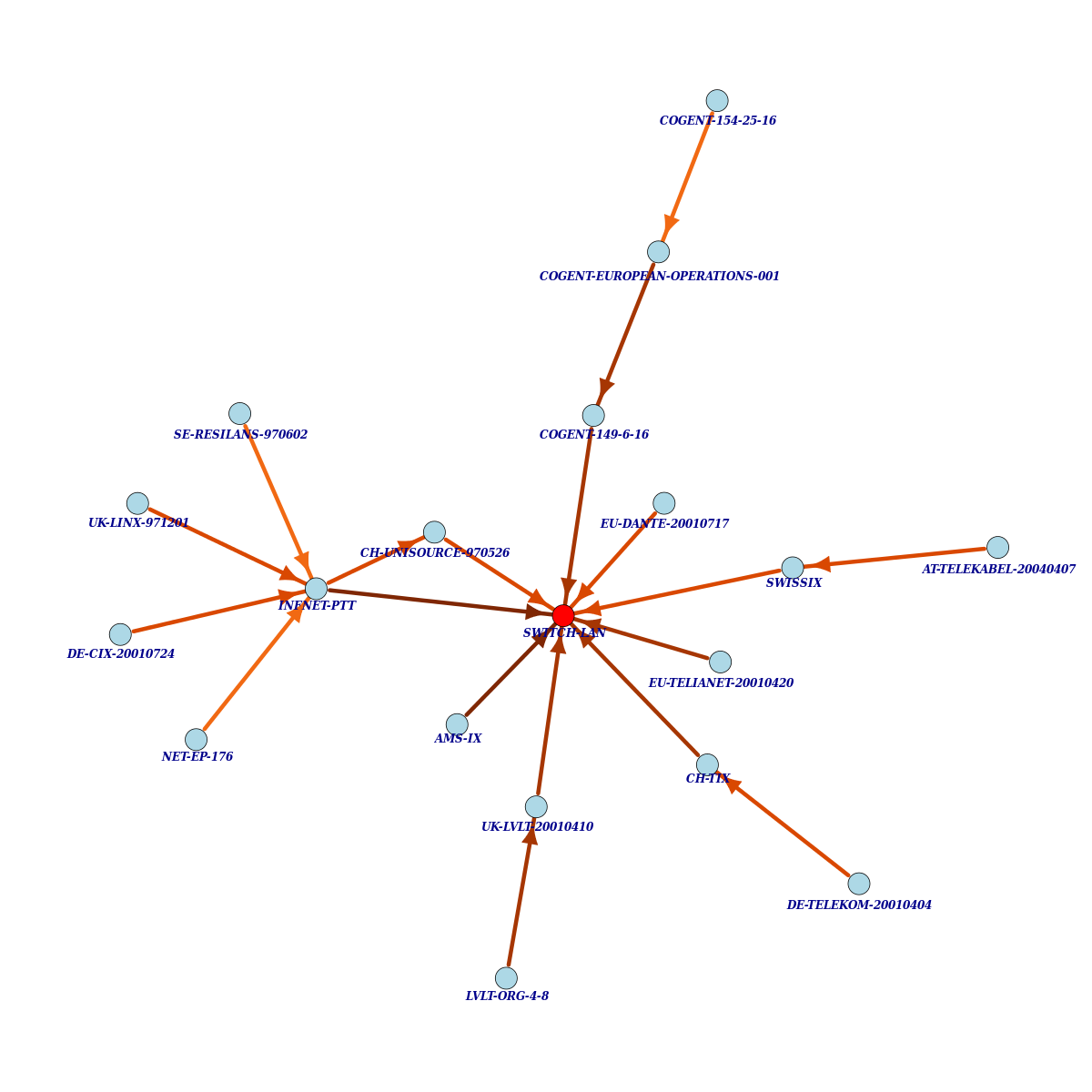

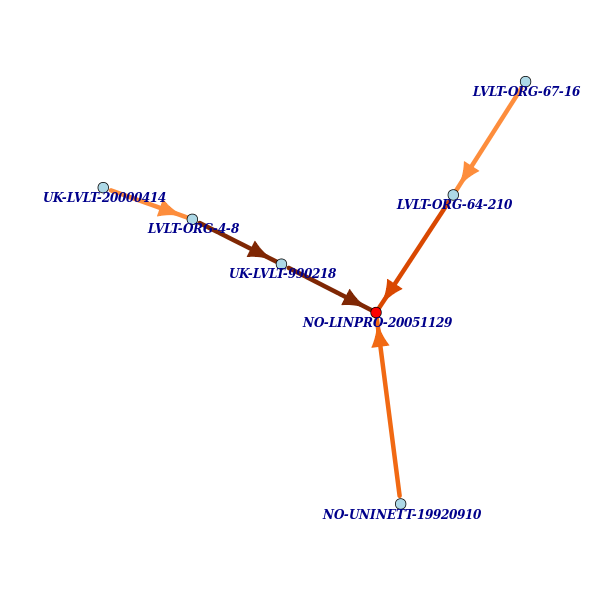

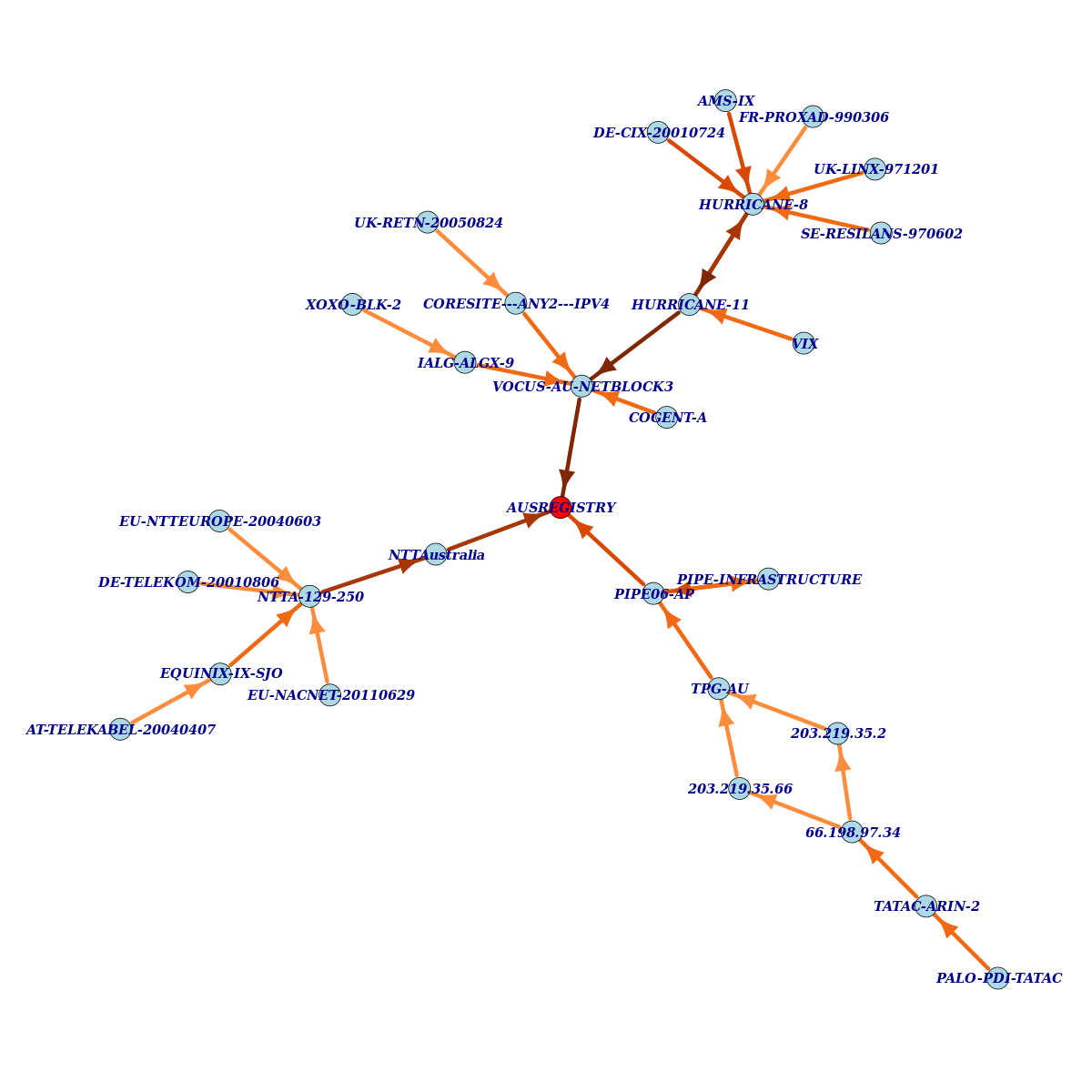

During some research I happened to visualise some random anchor calibration measurements and thought I'd share the graphs. The basis are IPv4 traceroutes from all (4500+) RIPE Atlas probes to the anchor encoded in the file name. The graphs show adjacencies that appear in more than 3% of all paths. IP addresses are aggregated by the network name as registered in the RIR registries. The darker an edge appears, tho more paths contain this adjacency; the colouring is scaled logarithmically. Enjoy Daniel -------------- next part -------------- An HTML attachment was scrubbed... URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment.html> -------------- next part -------------- A non-text attachment was scrubbed... Name: no-osl-as39029.png Type: image/png Size: 27564 bytes Desc: not available URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment.png> -------------- next part -------------- A non-text attachment was scrubbed... Name: nl-ams-as3333-2.png Type: image/png Size: 202914 bytes Desc: not available URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment-0001.png> -------------- next part -------------- A non-text attachment was scrubbed... Name: ch-zrh-as34288.png Type: image/png Size: 180802 bytes Desc: not available URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment-0002.png> -------------- next part -------------- A non-text attachment was scrubbed... Name: au-mel-as38796.png Type: image/png Size: 134827 bytes Desc: not available URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment-0003.png> -------------- next part -------------- A non-text attachment was scrubbed... Name: ch-zrh-as559.png Type: image/png Size: 102333 bytes Desc: not available URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment-0004.png> -------------- next part -------------- A non-text attachment was scrubbed... Name: signature.asc Type: application/pgp-signature Size: 163 bytes Desc: Message signed with OpenPGP using GPGMail URL: </ripe/mail/archives/ripe-atlas/attachments/20140227/410ad454/attachment.sig>
